AVR Spirit 6200

General Description

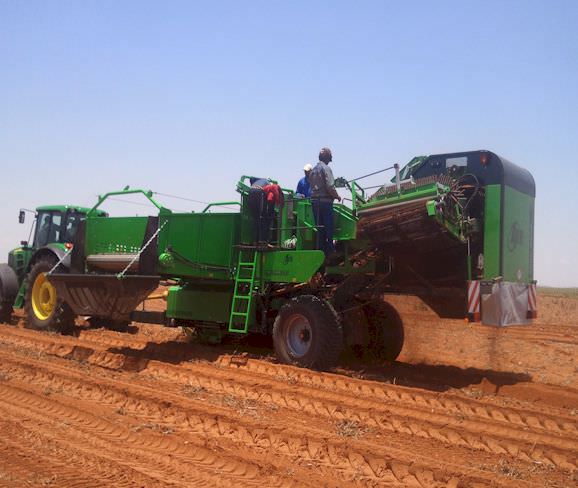

The AVR Spirit 6200 is one of the new-generation double row harvester imported by Uniekum. The AVR Spirit is a so-called offset harvester (eg towed offset behind the tractor, so that the tractor can travel nest to the rows.) The Spirit harvester is well-known for their superb digging quality, gentle handling of the product through-out the machine and the very effective separation of product and soil, stones and plant material. The unique separation processes employed by the machine, ensure that these harvester can be utilized equally-well in almost any type of soil.

The open and straight-forward construction ensures good accessibility for maintenance purposes. Wide wheels and tyres and the solid main frame make it a very stable machine to work with, even against slopes.

Specifications

Model   AVR Spirit 6200
 Rows / row-distance   : dubble,750-900mm

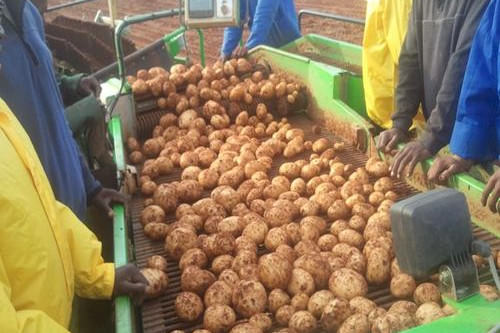

 Places at inspection table   : 6
 Track width   : adjustable to row width
 Tyres and wheels   : 700/50-R26.5
 Bunker capacity   : +/- 6 tons
 Bunker discharge height   : 4 200mm (maxsimum)
 Total lenght   : 9 830mm
 Total width (road)   : 3 300mm
 Height   : 3 800mm
 Mass   : 8 350kg
 Recommended tractor power   : 95kW/130hp (minimum)
